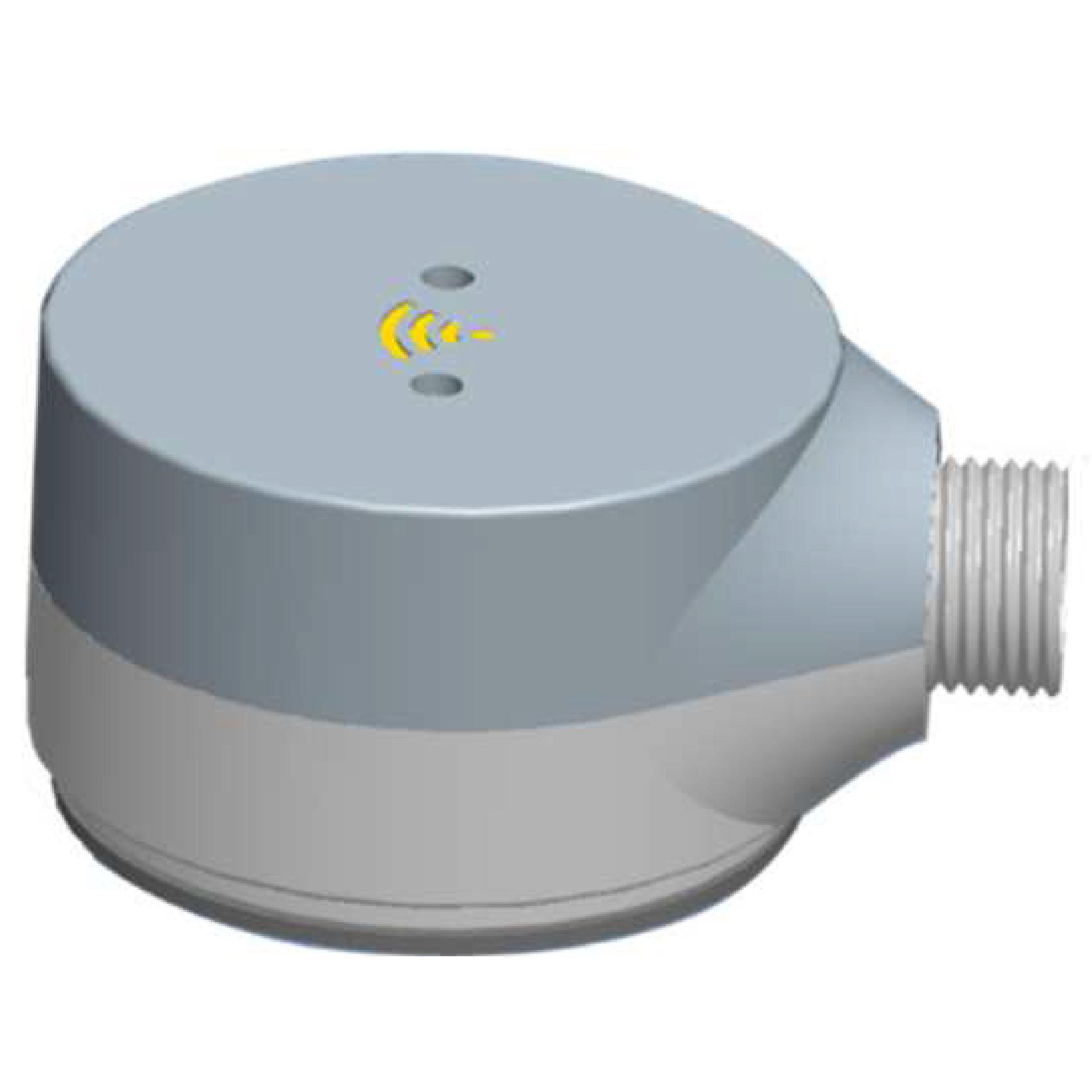

Ultrasonic Fuel Sensor

Description

New Edge Bluetooth BLE All-in-One Ultrasonic Fuel Level sensor will use non-contact technology to detect fuel
level without drilling holes.
With the ultrasonic reflection feature when cross liquid to air, it can read accurate fuel level height.
The fuel sensor can be set up via an (Android/iOS)app during installation.
Advantages of the product
No Drilling Required, Fast Installation
High-Precision Measurement You Can Trust
Universal Compatibility Across Tanks & Liquids
Smart Filtering with Built-in AI Algorithm
Easy Setup via Mobile App
Built for Harsh Environments (IP69K Rated)
Add Inquiry (0)

Key Features

  • Measurement Resolution: 0.1 mm
  • Measurement Accuracy: 99.5%
  • Maximum Measuring Range: Up to 250 cm
  • Blind Zone (Minimum Detection Height): 3 cm
  • Maximum Tank Thickness: 8–12 mm
  • Output Interface: BLE Bluetooth 5.0 + RS232
  • Supports Mobile App Configuration & Calibration
  • Supports Multiple Liquids: Diesel, Gasoline, Water, etc.
  • Compatible with Various Tank Materials: Metal, Aluminum, Stainless Steel, Fiber, Plastic
