Surrounding Radar

Description

Surround radars are radar systems equipped with multiple radar sensors strategically placed around a vehicle to cover its entire perimeter. Unlike traditional radars, which typically focus on the front or rear, surround radars ensure full environmental awareness by capturing data from all sides. This holistic approach is essential for advanced safety and automation features in modern vehicles.
Advantages of the product

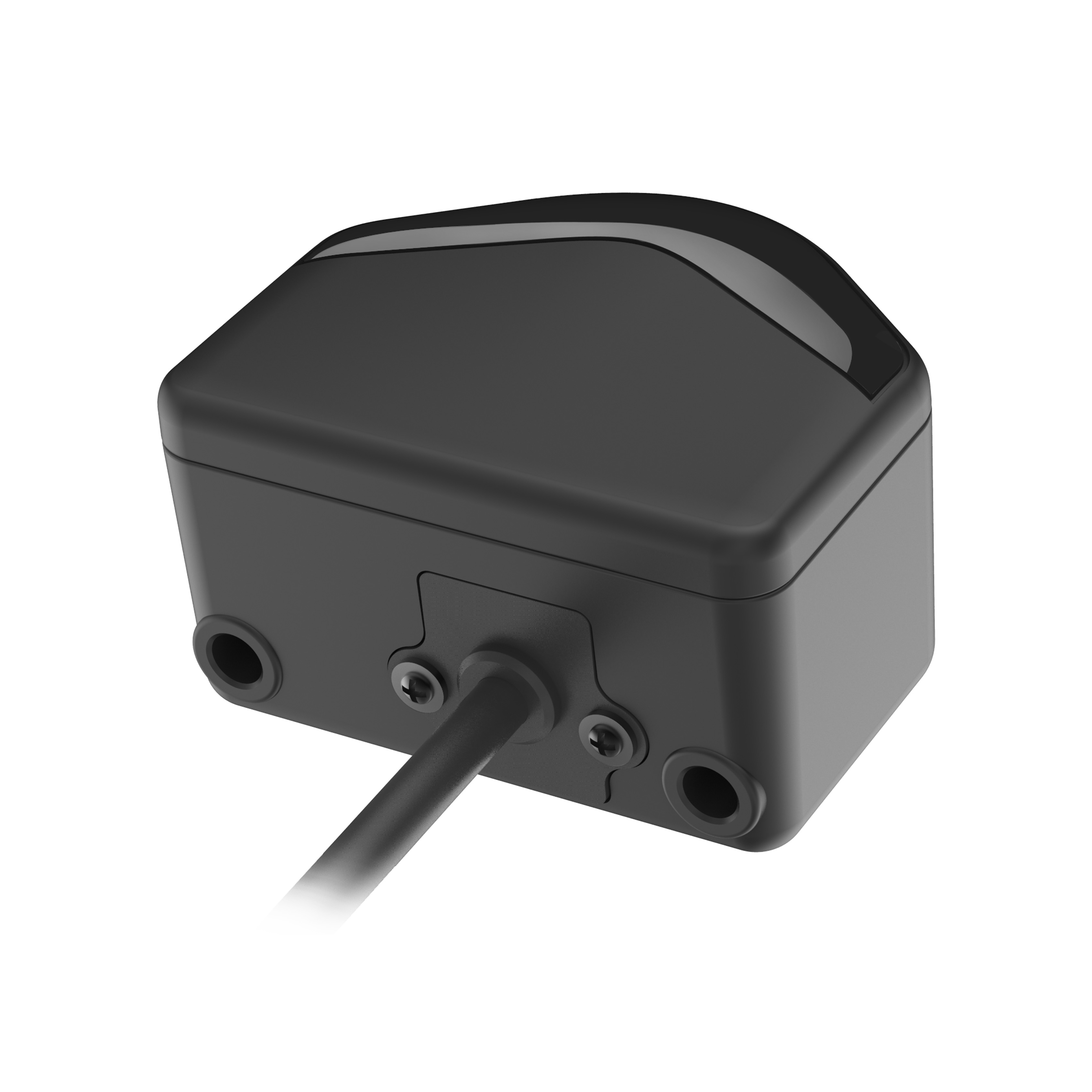

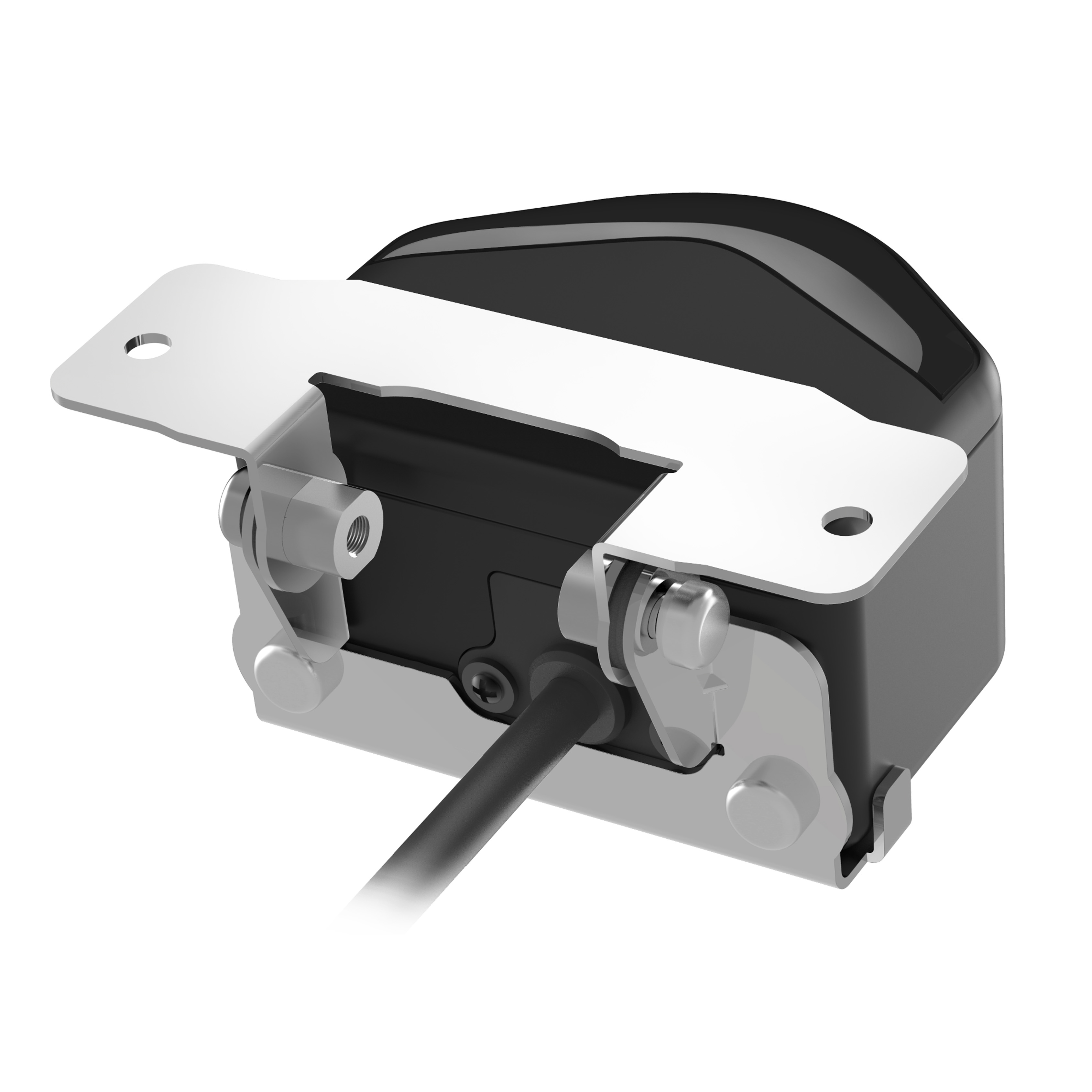

Compact Radar Size with Easy Installation
FMCW Waveform
Programmable Warning Zone
Unique Antenna Technology with Azimuth Angle 180°
Add Inquiry (0)

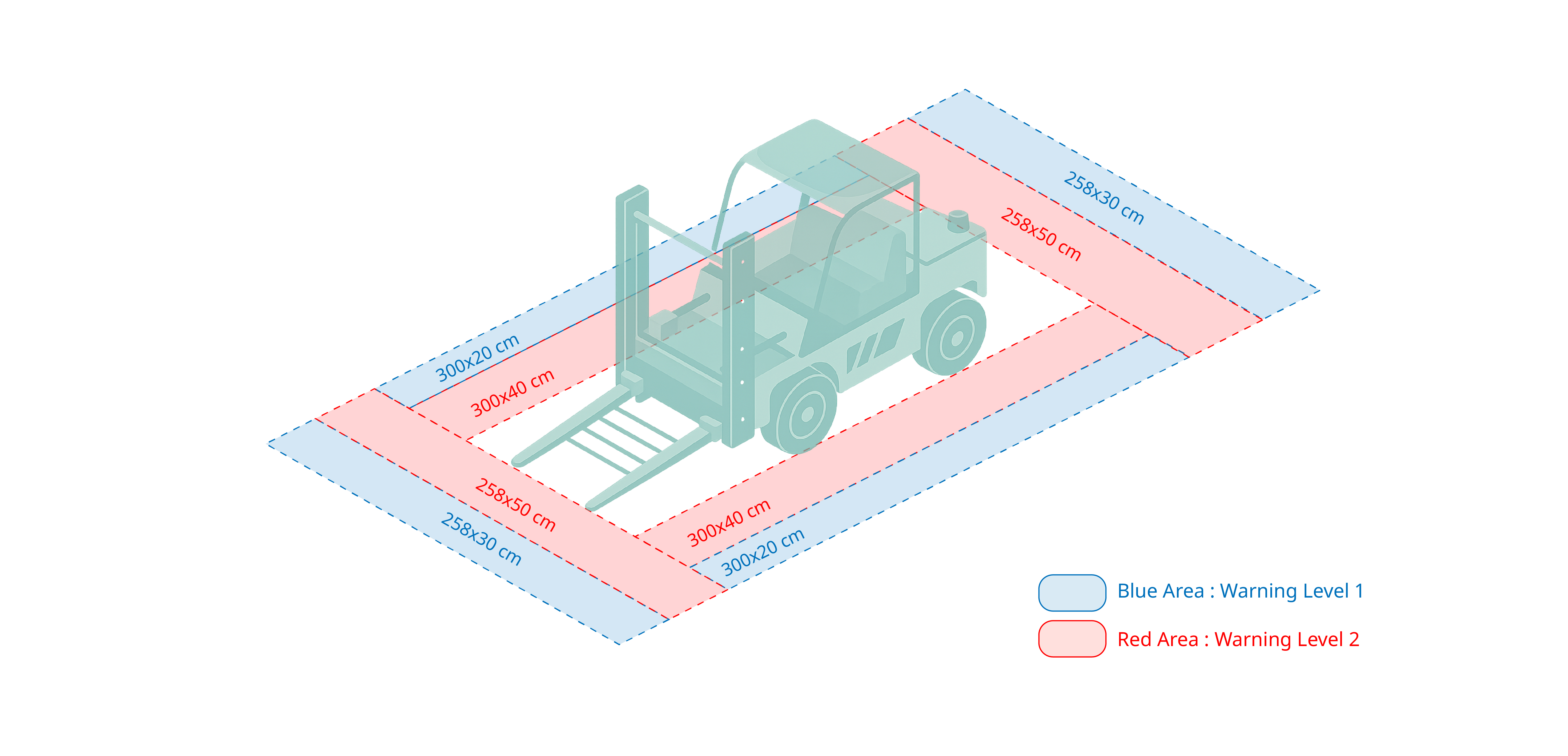

Warning Area




Specification



Item Specification Remark
Frequency 77-81GHz

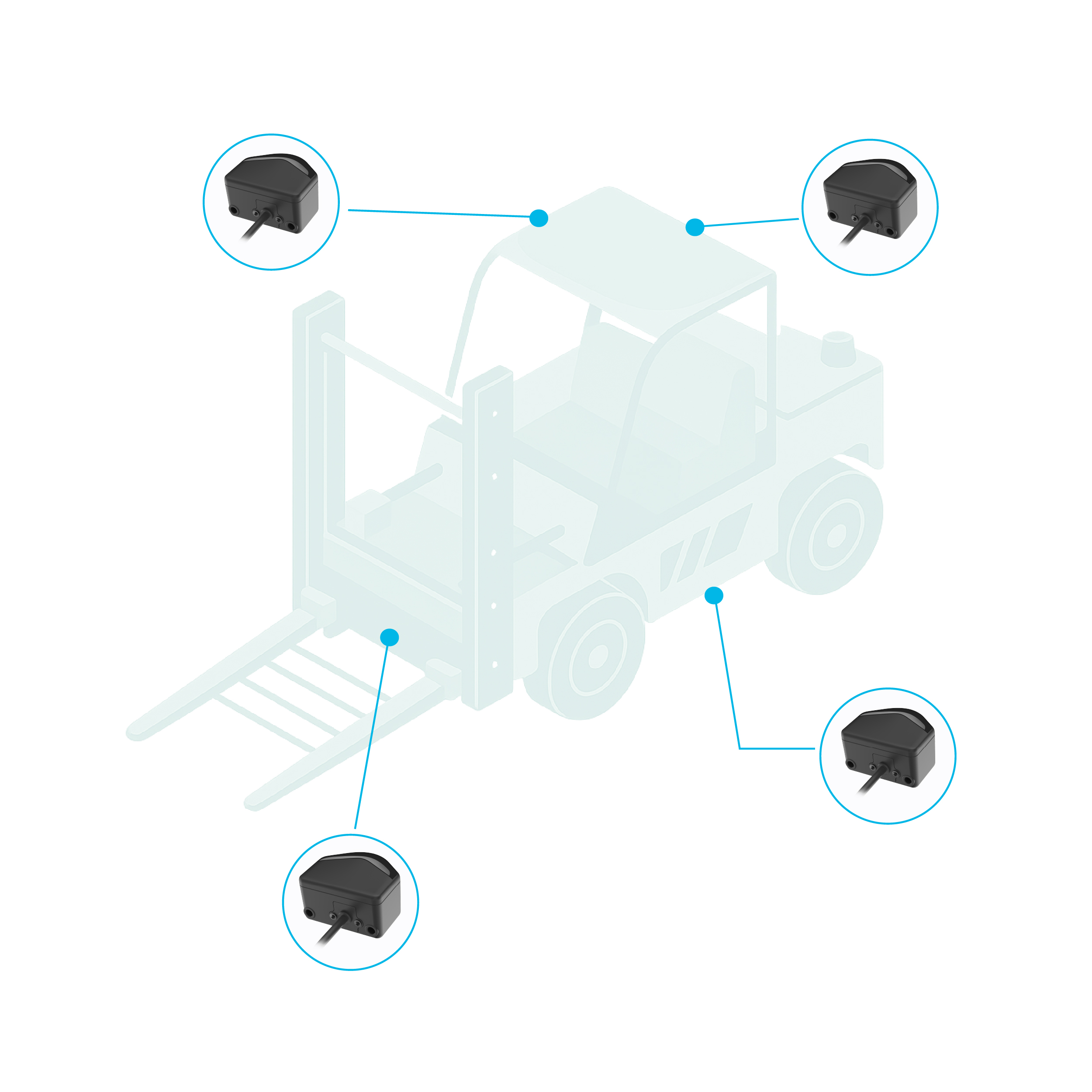

Structure Radar*4 + ECU box*1 + Indicator*1
SOC RF Front End + DSP + MCU built-in
Features Surrounding Radars to detect nearby obstacles
Output Data Rate 20Hz Each Radar
Supply Voltage 9 VDC to 36 VDC
Available for 12 VDC system and 24 VDC system
CAN Protocol CAN bus J1939 2.0A, Baud rate 500K bps
Booting Time < 1500ms
Power Consumption TBD
Dark Current 0 mA
Interface CAN/UART (Debugging)
Reverse/Left turn signal/Right turn signal/Odometer*		 *Without the CAN interface, the hardwires are needed.*
*Reverse/Left turn signal/Right turn signal reserved.*
Waterproof IP69K Radar unit
Operating Temperature -40℃ ~ 85℃
Storage Temperature -40℃ ~ 85℃
Dimension Radar 48 x 39.95 x 27.8 mm, ECU 71 x 71 x 20 mm
Weight Radar 45.2g, ECU 65.4g
