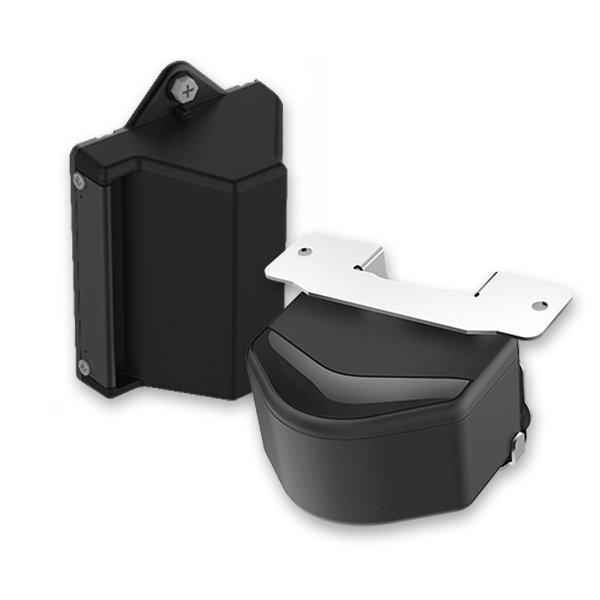

BSIS+MOIS+RPAS Radar

Description

The BSIS+MOIS+RPAS radar is a 77/79GHz radar system designed for heavy-duty vehicles such as buses and trucks, providing blind spot detection, moving-off warnings, and reverse parking assistance to enhance driver and pedestrian safety.

Compliant with UN regulations, this system utilizes high-precision radar and CAN Bus interface to deliver real-time alerts, helping drivers avoid collisions and improve road safety.

Advantages of the product
BSIS & MOIS & RPAS with one ECU & Indicator
Compliance with UN Regulation
Compact radar size with easy installation
Programmable warning zone
Antenna with patent: azimuth angle 180°
Add Inquiry (0)

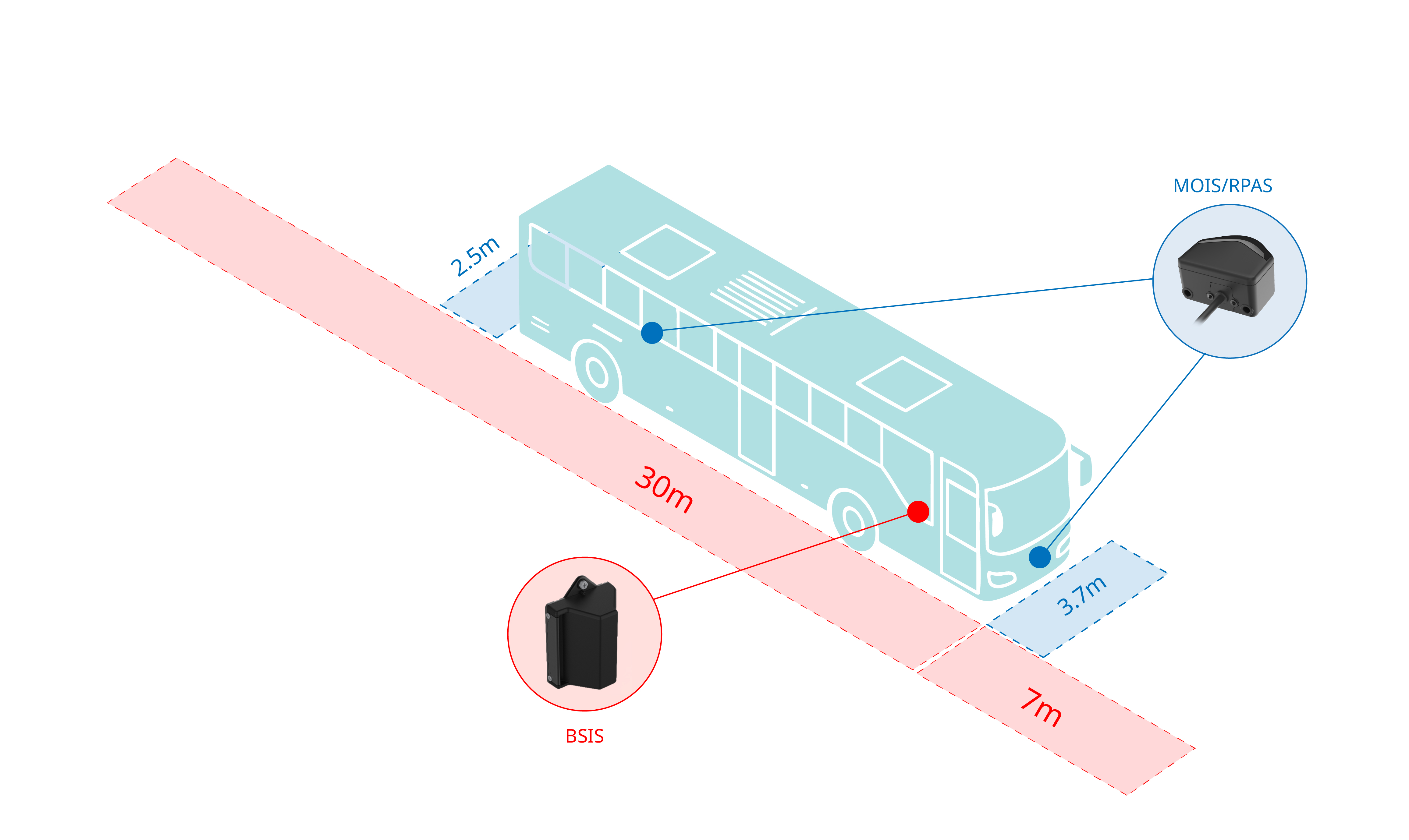

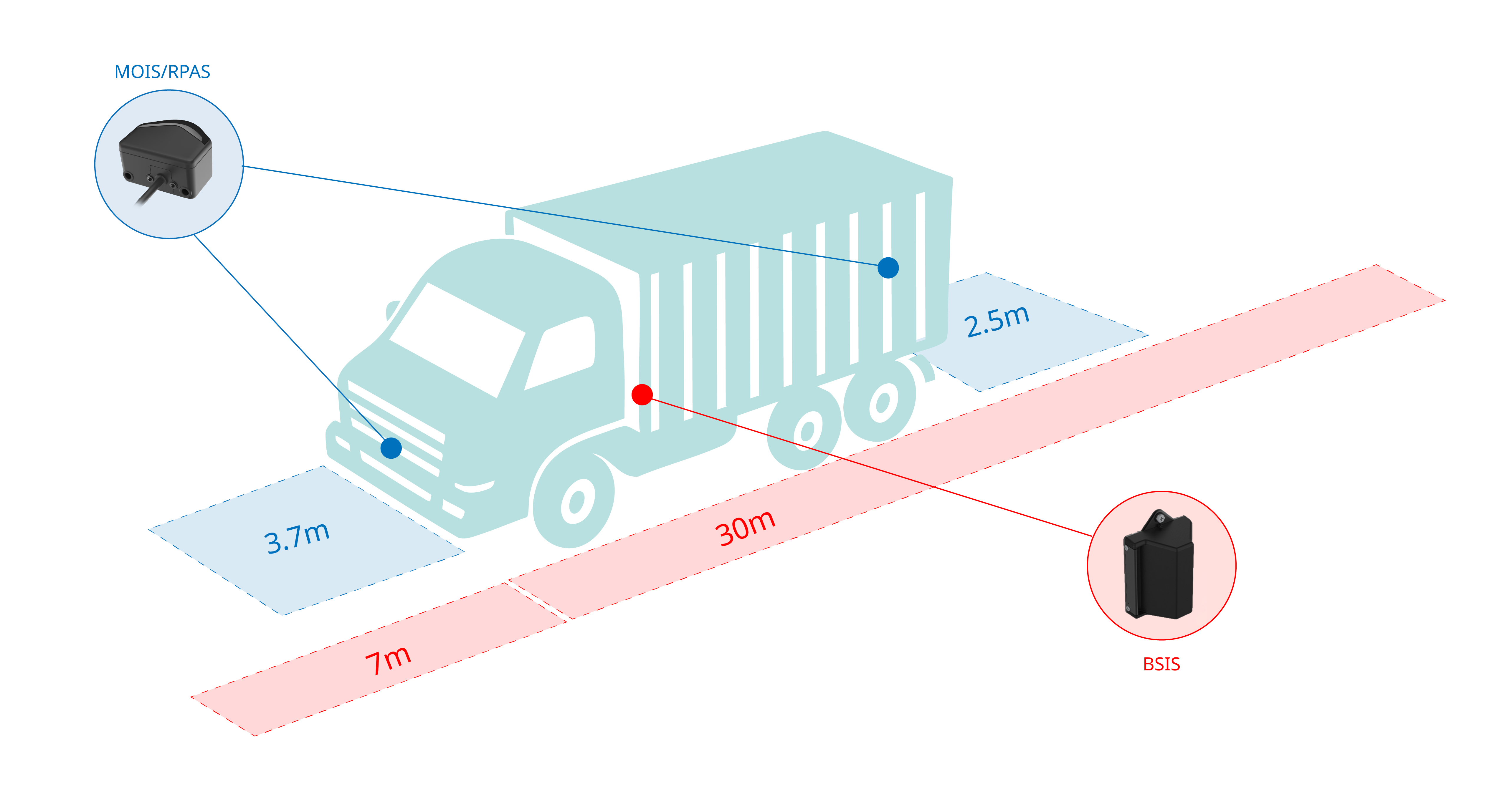

Warning Area



Specification



Item Specification Remark
Frequency 77-81GHz

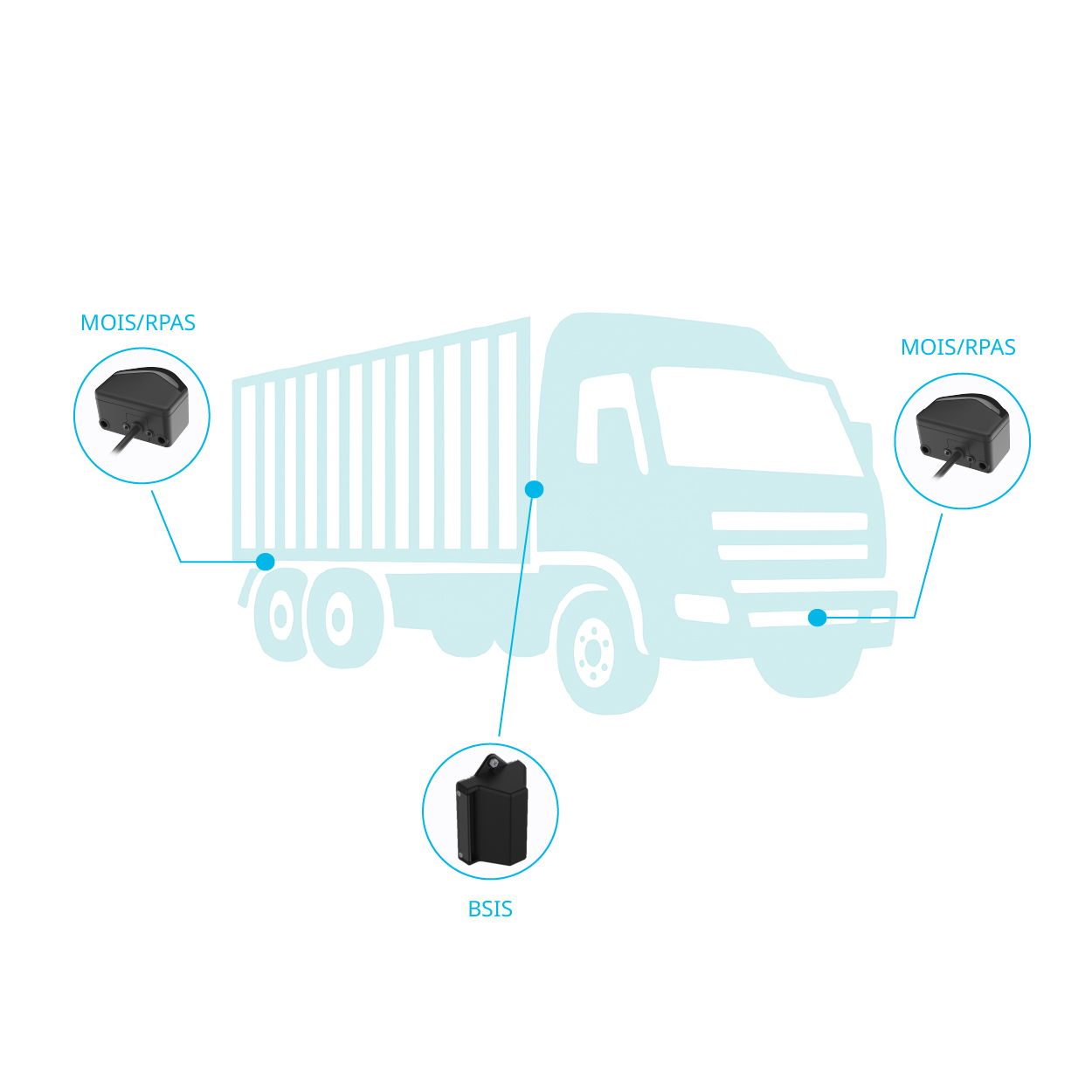

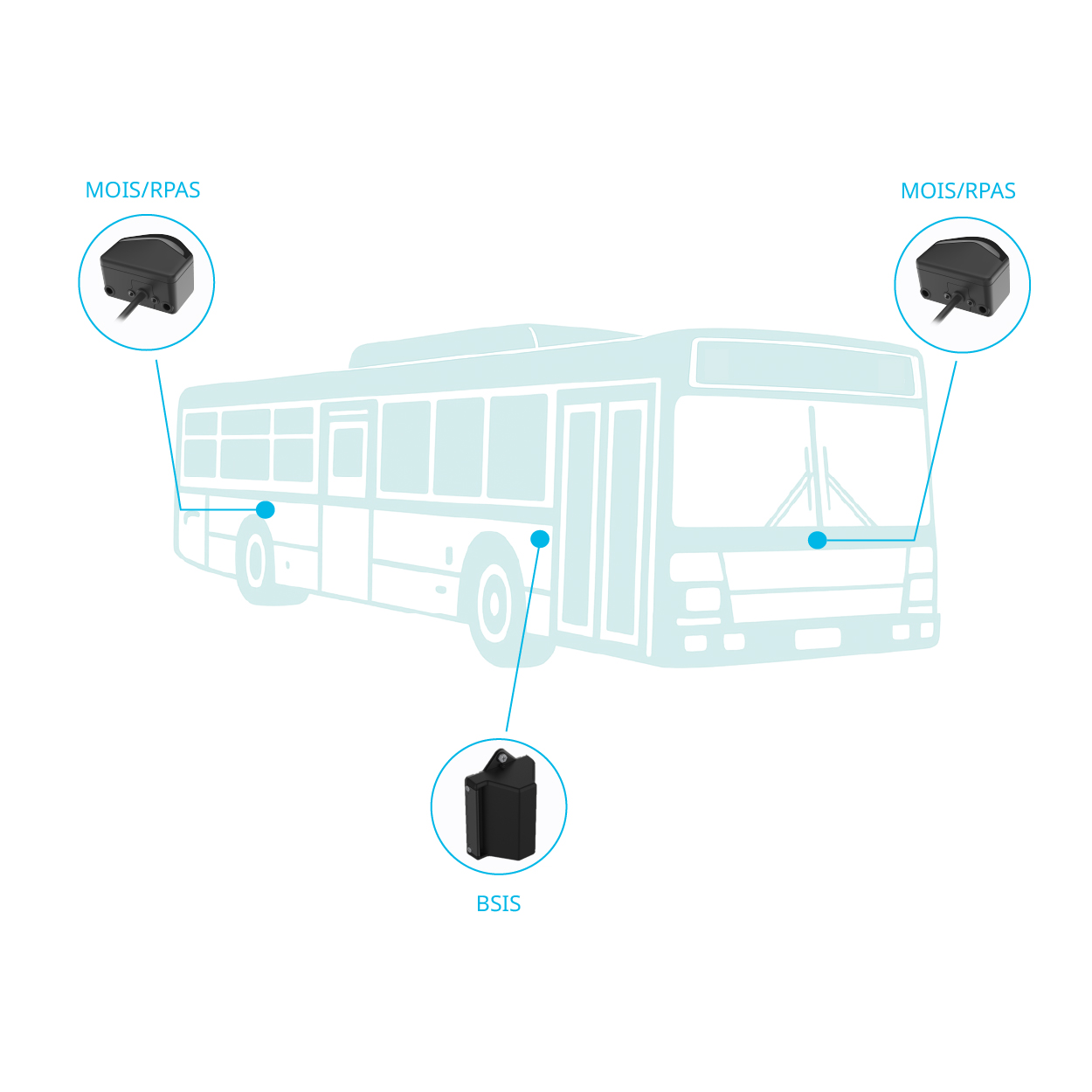

Structure Radar*4 + ECU box*1 + Indicator*1
SOC RF Front End + DSP + MCU built-in
Features Surrounding Radars to detect nearby obstacles
Output Data Rate 20Hz Each Radar
Supply Voltage 9 VDC to 36 VDC
Available for 12 VDC system and 24 VDC system
CAN Protocol CAN bus J1939 2.0A, Baud rate 500K bps
Booting Time < 1500ms
Power Consumption TBD
Dark Current 0 mA
Interface CAN/UART (Debugging)
Reverse/Left turn signal/Right turn signal/Odometer*		 *Without the CAN interface, the hardwires are needed.*
*Reverse/Left turn signal/Right turn signal reserved.*
Waterproof IP69K Radar unit
Operating Temperature -40℃ ~ 85℃
Storage Temperature -40℃ ~ 85℃
Dimension Radar 48 x 39.95 x 27.8 mm, ECU 71 x 71 x 20 mm
Weight Radar 45.2g, ECU 65.4g
