IntellitracDescription

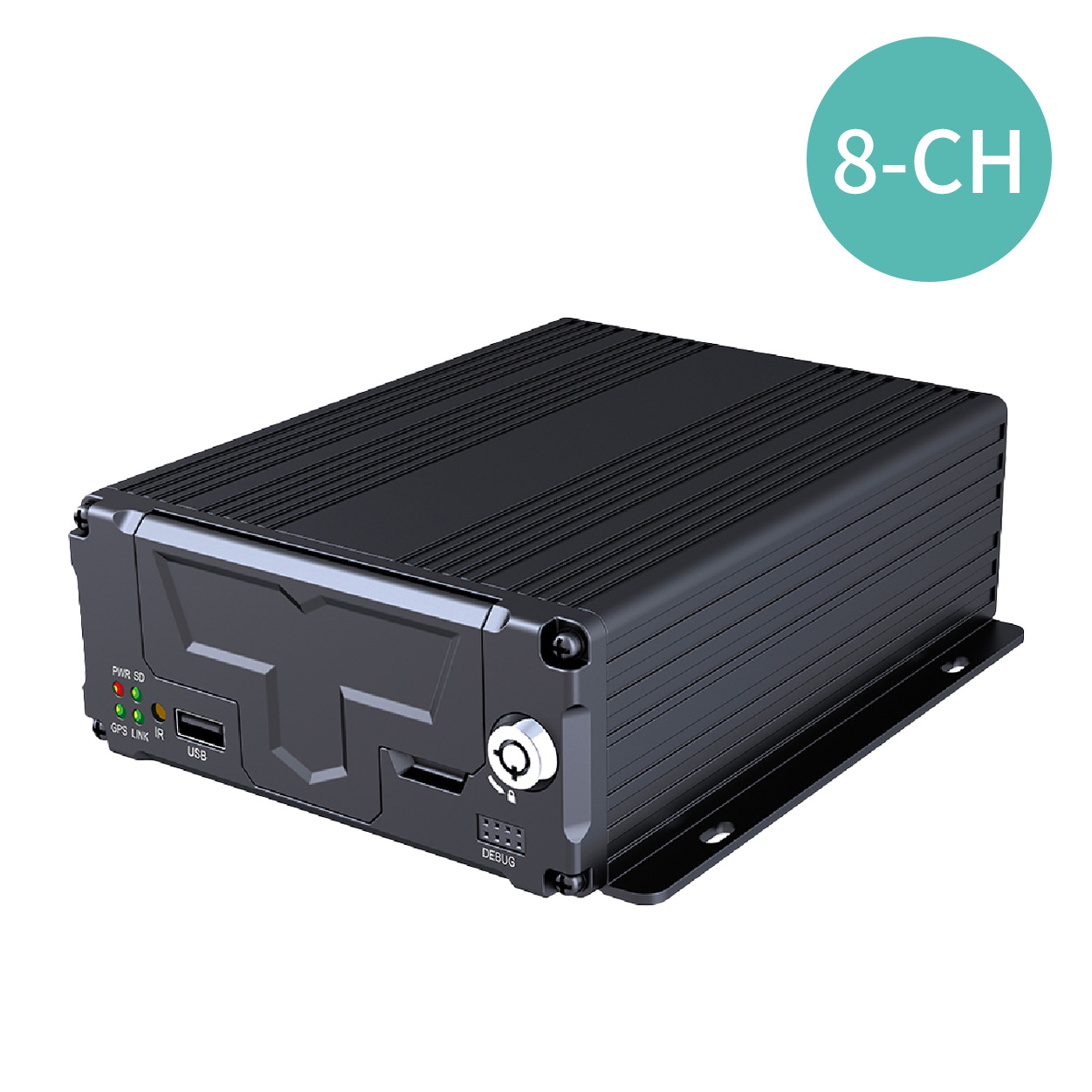

IntelliTrac MDVR is an in-vehicle surveillance system designed to improve fleet management safety.- Advantages of the product
- Equipped with 8 cameras to record front/rear/left/right/inner of a car
- VIDEO OUTPUT to monitor to playback video at site.
- H.264 video compression codec
- Recording Resolution：1920 x 1080, 1280 x 720
Key Features
- 4 x Alarm Input / 2x Alarm Output
- Remote Video Play Back
- Cloud Video Storage
- Graphic User Interface
- Reliable event log good for quick search
- Time and date record display on screen
- 2.5 SATA SSD recording for long time storage
- 3 axis G-Sensor
- GPS provides speed and coordinate
- Video is well stored of critical moment and compact
- 3G/4G internet connection support for fleet management online
Specification
| System | |
|---|---|
| Operation system | LINUX |
| Operation interface | Graphical menu operation interface |
| Interface language | Chinese, English, Portuguese, Russian, French, Turkish |
| Video | |
| File system | TES error correction encryption file management system |
| Video input | 8CHs IPC/AHD 1080P input |
| VGA output | 1CH support 1920*1080, 1280*720, 1024*768 resolution |
| CVBS output | 1CH aviation connector output PAL/NTSC, 1.0 Vp-p, 75Ω, CVBS |
| Video display | 1CH/ 4CHs/ 8CHs |
| Video standard | PAL: 25 Frames/s ; NTSC: 30 Frames/s |
| System resource | PAL: 200 Frames/s ; NTSC: 240 Frames/s |
| Audio | |
| Audio input | 8CHs independent input, 600Ω |
| Audio output | 1CH output, 600Ω , 1.0-2.2V |
| Record format | Synchronized video & audio recording |
| Audio compression | G711A |
| Video standard | H.264/H.265 |
| AI MDVR (DSM & ADAS) | |
| DSM (Driver Monitor Status) | Support 1CH video input; support safety alarm: - Face Recognition: Abnormal driver alarm - Fatigue Driving Alarm (Yawning, Continuous squinting) - Distracted Driving Alarm (Not looking straight ahead) - Answering Phone call Alarm - Smoking Alarm - Function Failure Alarm (DSM/ADAS Blocked Alarm) |
| ADAS (Advanced Driving Assistance System) | Support 1CH ADAS video input, support alarms: - Lane Departure Warning (LDW) - Monitoring Warning (HMW) - Forward Collision Warning (FCW) - Pedestrian Collision Avoidance Warning (PCW) |
| BSD (Blind Spot Detection) | Support 1-4CH BSD video input, detect: - People - Non-motorized vehicles (bicycles, motorcycles, etc.) |
| Digital processing and storage | |
| Image format | 8* 1080P (1920* 1080) |
| Image quality | 1-14 levels adjustable (1 is the best) |
| Video Bit-rate | 192Kbps-8Mbps (each channel) |
| Video storage | 85M-3600MByte/hour |
| Playback resolution | 1-8CH* 1080P |
| Audio Bit-rate | 4KByte/s (each channel) |
| HDD storage | 2.5inch SATA HDD (7mm), Max 4TB |
| SD card storage | 1*SD card slot, Support 64GB/128GB/256GB |
| Alert | |
| Alert input | 4CHs independent alarm input (High/Low level voltage) |
| Alert output | 2CH alarm output (High level voltage) |
| Motion detection | Support |
| USB | |
| HOST interface | 1×USB2.0 port in front board |
| Network | |
| RJ45 | 1 RJ45 optional, 10M/100M/1000M adaptive |
| WiFi | Built-in WiFi module optional (IEEE 802.11b/g/n), 2.4GHz or 5.8GHz optional |
| 3G/4G | Built-in 3G/4G (FDD-LTE/TD-LTE/WCDMA/CDMA200) module optional |
| GPS | |
| GPS | Built-in GPS/GLONASS module optional |
| Other External Port | |
| TTL_UART output | 2 TTL_UART output (can be RS232 or RS485) |
| RS232 | 1× RS232 optional |
| RS485 | 1× RS485 optional |
| Intercom | 1× MIC input optional |
| G-Sensor | Built-in G-Sensor module optional |
| Others | |
| Power supply and consumption | DC8-36V 5% ≤12W |
| Operating Temp/humidity | -40°C ~ +70°C / ≤80% |
| Size | 170 (L)× 128 (W)× 56 (H)mm |
